DATALOGIC QUICKSCAN LITE IMAGER

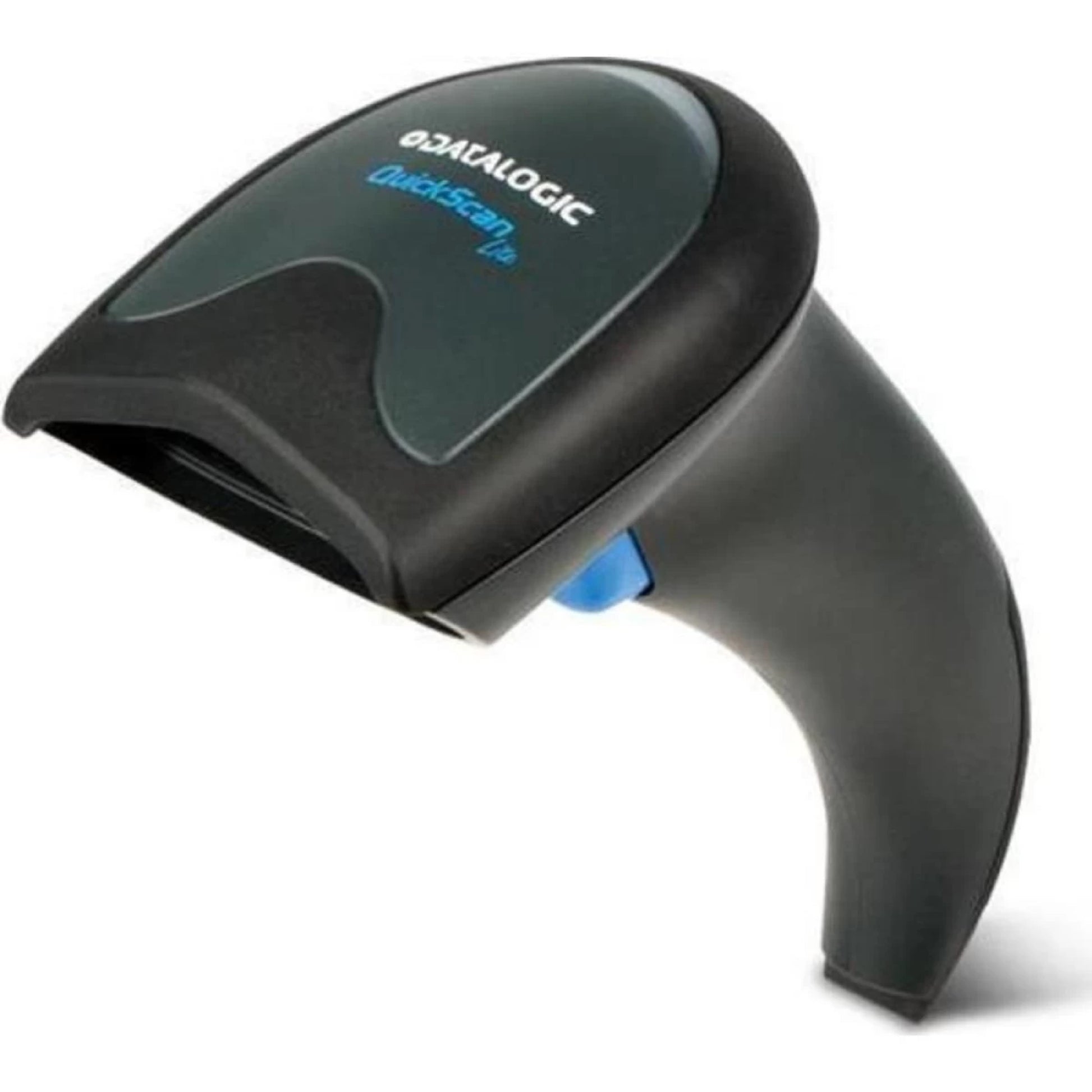

QuickScan™ QW2120-BKK1S - Datalogic Barcode Reader

The QuickScan™ QW2120-BKK1S is part of the Datalogic ADC QuickScan series, offering a cost-effective solution for general-purpose handheld data collection. It is specifically designed to read long and truncated barcodes, making it ideal for use in retail, light manufacturing, document processing, and banking/finance environments.

Key Features:

• Wide Scan Angle: Ensures easy reading of barcodes from various orientations.
• Laser-like Scan Line: Provides a thinner, extended scan line for precise barcode capture.
• Datalogic’s 'Green Spot' Technology: Visual feedback indicates a successful scan, enhancing user experience.
• Multiple Interface Options: Supports USB, Keyboard Wedge, and RS-232 for flexibility in connection.
• Durable Design: Built with over-molded rubber to protect against drops, offering resilience in demanding environments.
• IP42 Sealing Rating: Provides protection against water and particulate ingress, ensuring longevity in diverse environments.
• Drop Resistance: Withstands drops up to 1.5 meters (5 feet), ideal for rough handling.

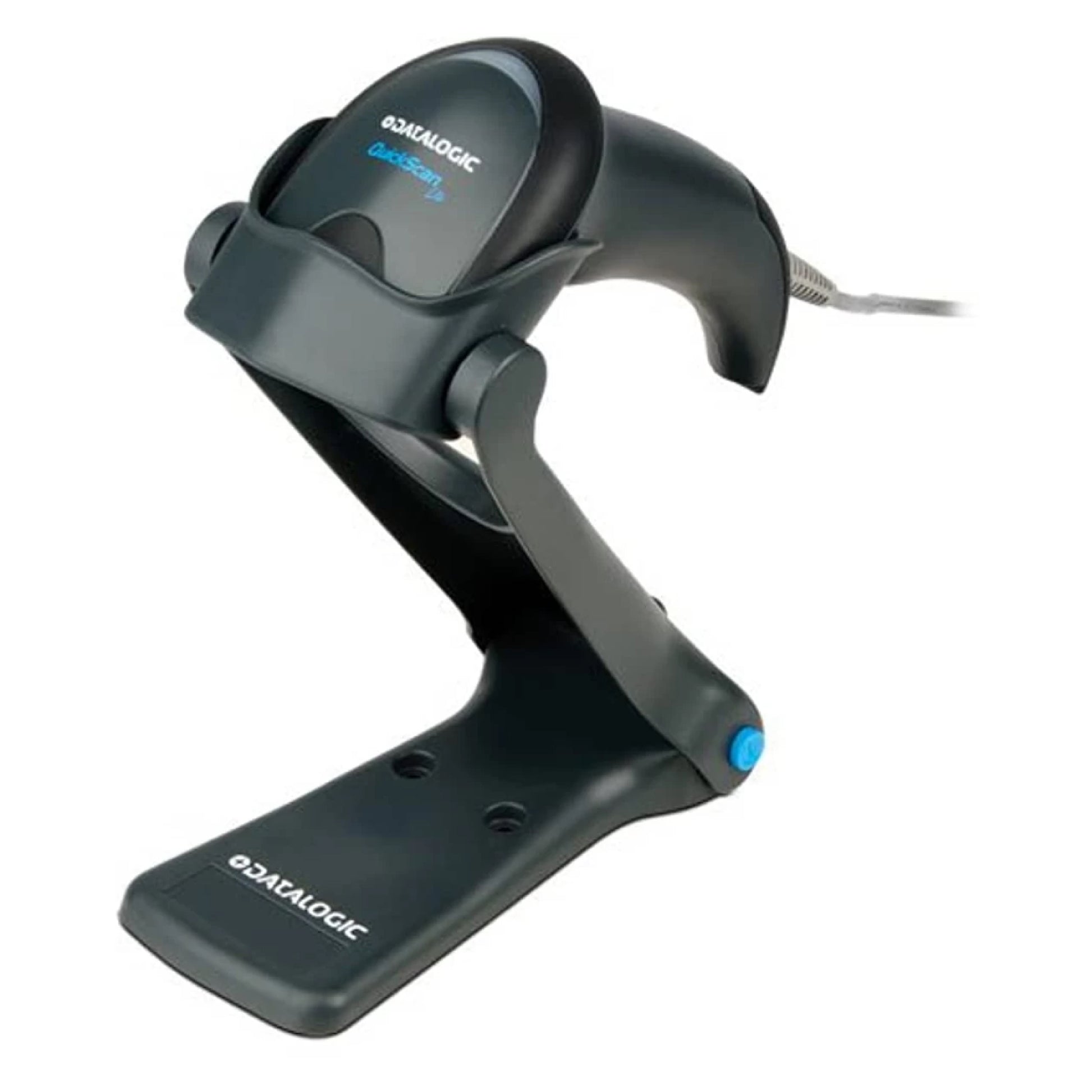

• Compact & Multi-position Stand: Designed for versatile use and space efficiency.
• USB Certified Kits Available: Simplifies setup and ensures compatibility.
• Remote Host Download: Lowers service costs and improves operational efficiency (for -RM models).
• EASEOFCARE Service Plans: Offers a wide range of service options to maximize uptime and protect your investment.

Decoding Capabilities:

• 1D / Linear Codes: Auto-discriminates all standard 1D barcodes, including GS1 DataBar™ linear codes.
• Postal Codes: Supports China Post.
• Stacked Codes: Supports EAN/JAN Composites, GS1 DataBar Composites, and other GS1 DataBar variations.

Reading Performance:

• Light Source: Red LED with a wavelength of 610-650 nm.
• Minimum Print Contrast Ratio: 25% for effective scanning.
• Maximum Read Rate: 400 reads per second, ensuring fast and efficient performance.
• Reading Angles:
  • Pitch: +/- 65°
  • Roll (Tilt): +/- 45°
  • Skew (Yaw): +/- 70°
• Resolution: 0.102 mm (4 mils) for 1D codes.
• Field of View: 56° +/- 2° for broad barcode reading.

This barcode reader provides a robust and reliable solution for industries requiring efficient barcode scanning in a wide variety of applications.
