APC SRV6KI Easy UPS On-Line 6KVA 6000W Tower

Short Description: APC SRV6KI Easy UPS On-Line is a 6000VA / 6000W uninterruptible power supply designed to protect sensitive electrical equipment through online double-conversion technology. Featuring a pure sine wave output, configurable 220V/230V/240V output, tower design, multifunction LCD display, automatic and manual internal bypass, intelligent battery management, and USB, RS-232 and SmartSlot management interfaces, it provides a professional power protection solution.

Features & Technical Specifications

Feature	Details
Brand	APC
Model	SRV6KI
Series	Easy UPS On-Line
Product Type	Uninterruptible Power Supply
Apparent Power	6000VA / 6KVA
Active Power	6000W
Topology	Online Double Conversion
Form Factor	Tower
Output Voltage	Configurable 220V / 230V / 240V
Output Connection	Hardwire 3-Wire (1P+N+E)
Waveform	Sine Wave
Full-Load Efficiency	94%
Output Voltage Distortion	1%
Output Frequency	50/60Hz ±3Hz, Synchronized to Mains
Load Crest Factor	3:1
Input Voltage Range	110–300V at 60% Load; 176–300V at Full Load
Input Frequency	40–70Hz Auto Sensing
Bypass	Internal Automatic and Manual
ECO Mode	Supported
Emergency Power Off	EPO Supported
Battery Type	Lead-Acid
Nominal Battery Voltage	192V
Typical Recharge Time	4 Hours
Expected Battery Life	3–5 Years
Battery Charge Power	235W
Display	Multifunction LCD
Management Interfaces	DB-9 RS-232, USB, SmartSlot
SmartSlot Quantity	1
Surge Energy Rating	600 Joules
Dimensions	685 × 190 × 374 mm
Net Weight	54 kg
Audible Noise	55dBA at 1 Metre
Operating Temperature	0–40°C
Protection Rating	IP20
Listed Standard Warranty	2 Years, Repair or Replace

Full Description

Professional 6000W Power Protection

The APC SRV6KI provides 6000VA / 6000W of output capacity for systems requiring reliable backup power and protection against electrical disturbances.

It can support compatible servers, networking equipment, and sensitive electronic systems when properly sized and installed for the connected load.

Online Double-Conversion Technology

The UPS uses online double-conversion topology to condition electrical power before supplying connected equipment.

This technology helps maintain stable output power and reduce the impact of utility voltage and frequency disturbances on sensitive loads.

Pure Sine Wave Output

The APC SRV6KI delivers a sine wave output suitable for a wide range of compatible electronic equipment.

This waveform provides consistent electrical output for devices requiring high-quality power.

Configurable Output Voltage

The nominal output voltage can be configured for 220V, 230V, or 240V to meet the requirements of connected equipment.

This flexibility supports integration into different electrical installations when the required wiring and protection standards are followed.

94% Efficiency at Full Load

The UPS has a stated full-load efficiency of 94%.

Efficient operation helps reduce energy losses during normal use under specified conditions.

Automatic and Manual Internal Bypass

The APC SRV6KI includes an internal bypass system supporting automatic and manual operation.

The bypass can supply connected loads directly from utility power under certain conditions, such as UPS overload or faults, provided a suitable utility supply is available.

Power conditioning and protection characteristics may differ while operating in bypass mode.

Automatic Restart After Shutdown

The UPS supports automatic restart of connected loads when utility power returns after a shutdown, according to its operating configuration.

This can help restore equipment operation without manual intervention in supported situations.

ECO Mode for Improved Efficiency

The UPS includes ECO Mode, which bypasses certain conversion stages when utility power conditions are suitable to improve operating efficiency.

Protection behaviour in ECO Mode differs from continuous online double-conversion operation, so the selected mode should match the sensitivity of the connected equipment.

Emergency Power Off

The APC SRV6KI supports Emergency Power Off, allowing integration with a compatible EPO system.

This feature can be useful in facilities requiring emergency shutdown of connected equipment.

Input Power Factor Correction

Input power factor correction helps improve the UPS input electrical characteristics.

Depending on installation design, this may help reduce certain generator and cabling requirements.

Intelligent Battery Management

The UPS includes intelligent battery management designed to improve battery performance, reliability, and service life through controlled charging.

This helps maintain battery operating conditions within the system's intended design.

192V Lead-Acid Battery System

The APC SRV6KI uses a lead-acid battery system with a nominal voltage of 192V.

The supplied specifications state a typical recharge time of four hours, expected battery life of three to five years, and battery charging power of 235W.

Actual battery service life depends on ambient temperature, discharge cycles, operating conditions, and maintenance.

Multifunction LCD Display

The UPS includes a multifunction LCD interface that displays operating modes, system parameters, and alarms.

The display helps users monitor UPS status and access essential operating information.

USB, RS-232 and SmartSlot Interfaces

Management interfaces include USB, DB-9 RS-232, and one intelligent SmartSlot.

These interfaces support compatible monitoring and management options. A SmartSlot does not automatically mean a network management card is included.

600-Joule Surge Protection Rating

The stated surge energy rating is 600 joules.

This forms part of the UPS's built-in electrical protection capabilities.

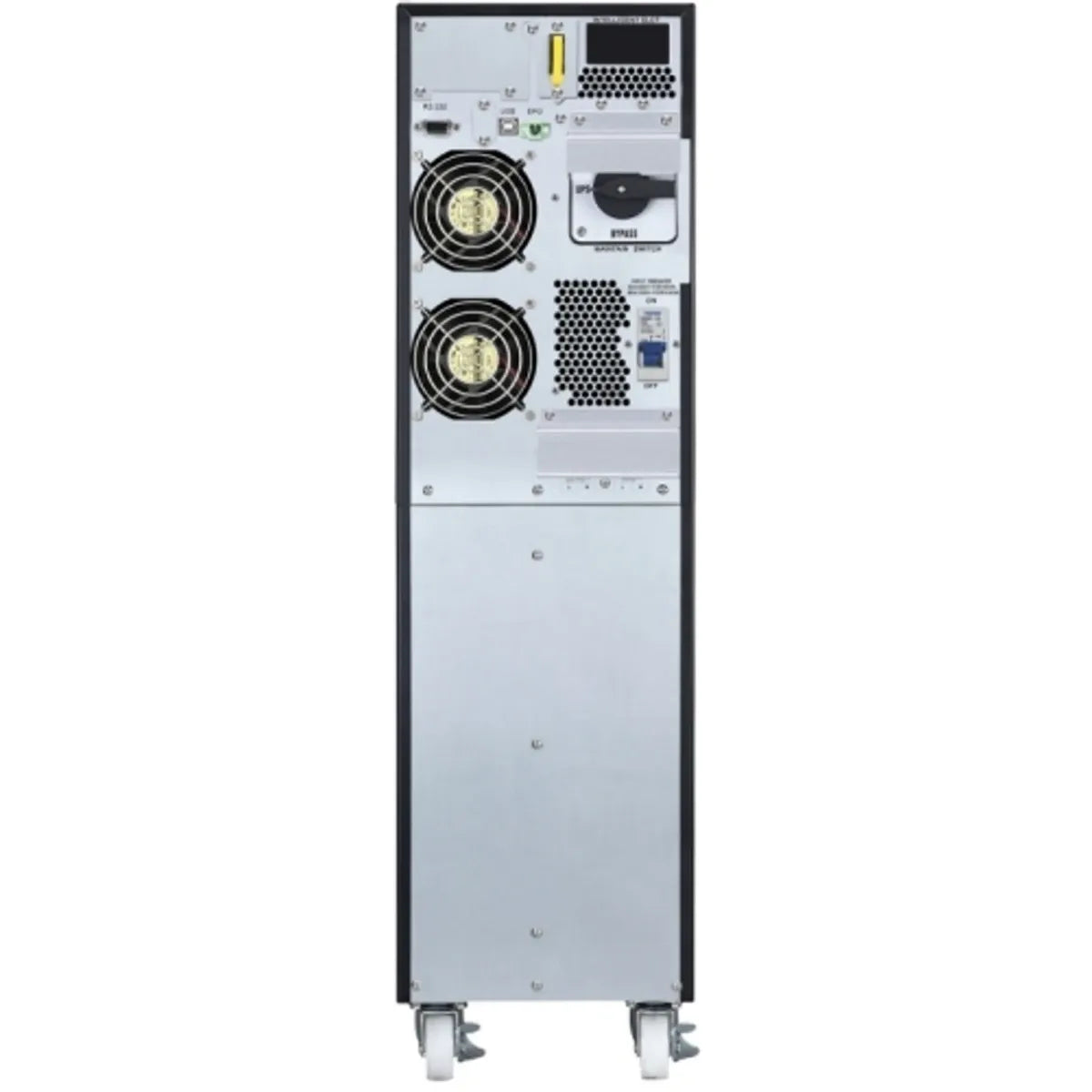

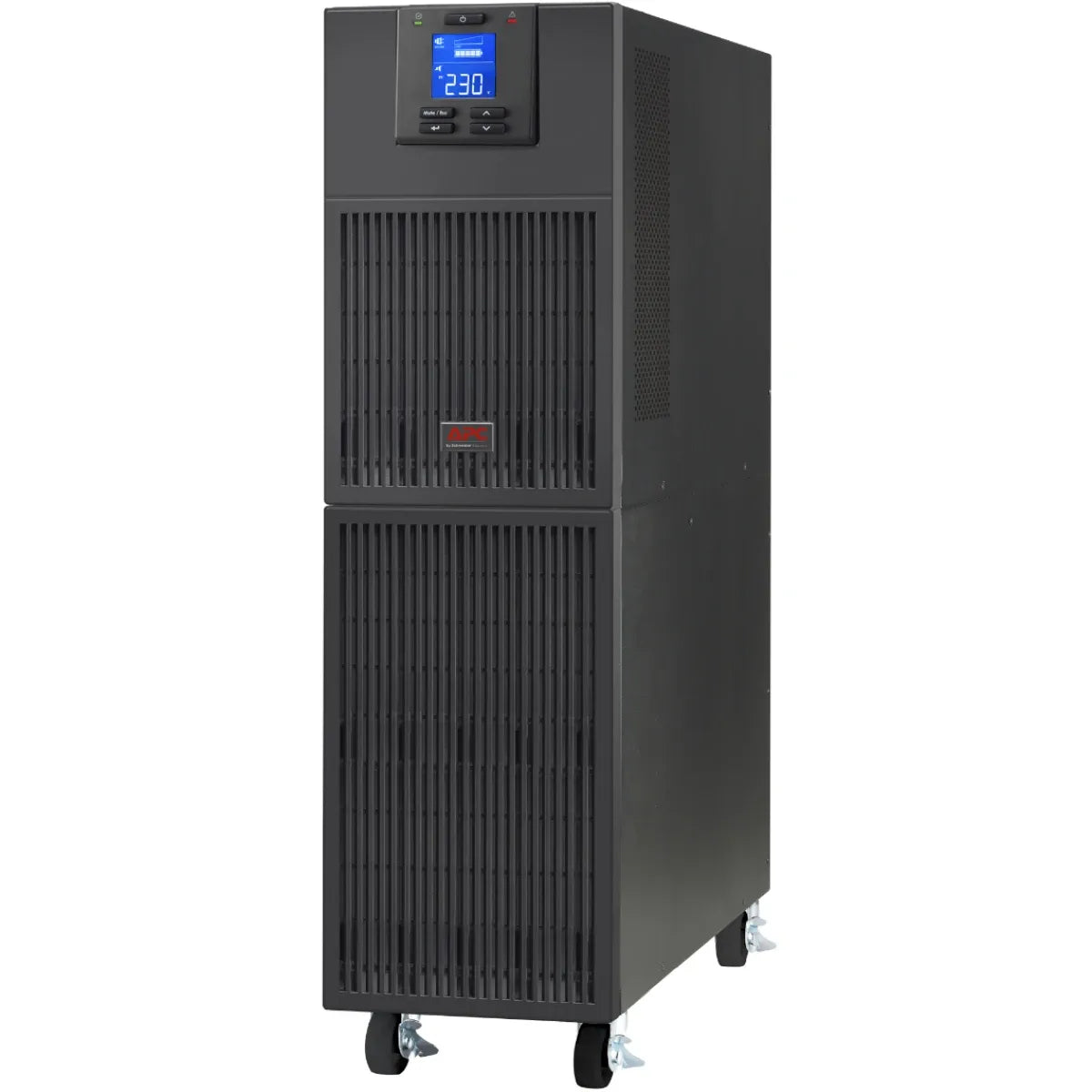

Tower Design for Professional Installations

The UPS has a black tower enclosure measuring 685 × 190 × 374 mm and weighing approximately 54 kg.

Installation requires adequate space, ventilation, and consideration of the unit's weight and electrical connection requirements.

Ideal Applications

• Servers and IT infrastructure.
• Networking and telecommunications equipment.
• Sensitive electronic systems.
• Technical equipment rooms.
• Compatible monitoring and control systems.
• Office infrastructure requiring backup power.
• Facilities requiring online double-conversion UPS protection.

Why Choose APC SRV6KI?

• 6000VA / 6000W power capacity.
• Online double-conversion topology.
• Pure sine wave output.
• Configurable 220V, 230V, and 240V output.
• Stated 94% full-load efficiency.
• Automatic and manual internal bypass.
• ECO Mode for improved efficiency.
• Emergency Power Off support.
• Intelligent battery management.
• Multifunction LCD display.
• USB, RS-232, and SmartSlot management interfaces.
• Professional tower design.

Frequently Asked Questions

What is the APC SRV6KI power rating?

It is rated at 6000VA / 6KVA with a maximum active output power of 6000W.

Does it use online double conversion?

Yes. The UPS uses online double-conversion topology.

What type of batteries does it use?

The supplied specifications list lead-acid batteries with a nominal battery voltage of 192V. Battery quantity and amp-hour capacity were not specified in the provided images.

How long will it run during a power outage?

Runtime depends on the connected load and battery condition. The supplied images do not provide a specific runtime value at a defined load.

Does it support 230V output?

Yes. The nominal output can be configured for 220V, 230V, or 240V.

Does it have standard wall-style output sockets?

The supplied product specifications identify a hardwired three-wire output connection (1P+N+E), rather than conventional household plug sockets.

Can it be managed over a network?

The UPS includes a SmartSlot for compatible management accessories. The supplied specifications do not confirm that a network management card is preinstalled.

Important Installation Notes

• The hardwired output requires appropriate installation by a qualified electrician.
• The 6000W rating must be considered alongside equipment startup currents and actual power requirements.
• Battery runtime was not specified and varies with connected load.
• Provide adequate ventilation and support for the 54 kg unit.
• The IP20 rating is intended for suitable indoor environments and does not provide water protection.
• Verify electrical input, circuit protection, and wiring requirements before installation.
