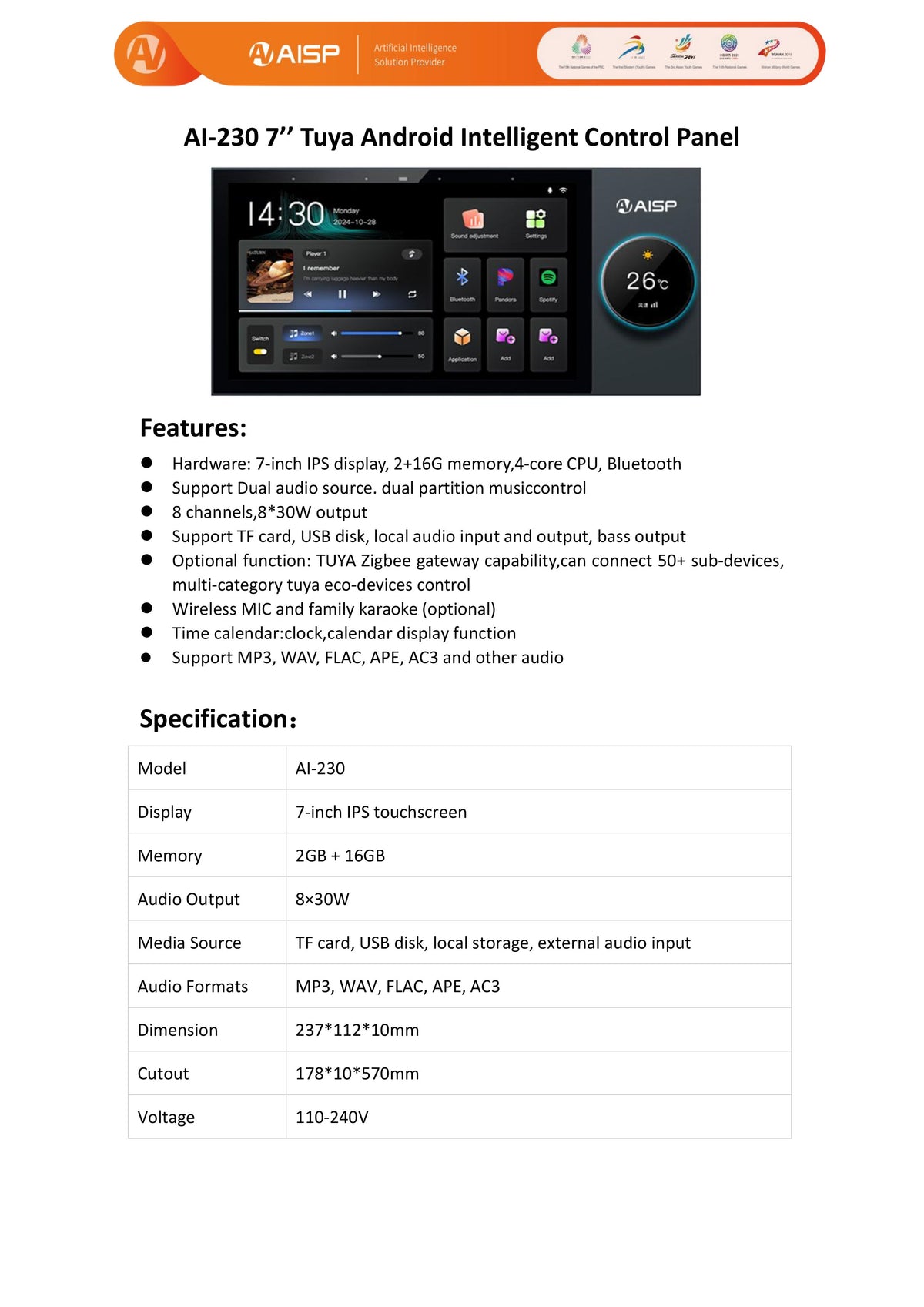

AISP AI-230 7-Inch Tuya Android Intelligent Control Panel

Short Description: AISP AI-230 Smart Control Panel combines a 7-inch IPS touchscreen, Android operating system, quad-core processor, 2GB RAM and 16GB internal storage. Designed for smart audio control, it features eight audio channels with a specified 8×30W output, Bluetooth connectivity, dual audio sources and two-zone music control. It also supports the Tuya ecosystem, with optional Zigbee gateway functionality depending on the configuration.

Features & Specifications

7-Inch IPS Touchscreen

The AISP AI-230 features a 7-inch IPS touchscreen that provides a convenient visual interface for controlling music playback, adjusting settings and accessing supported smart functions from one central location.

Android System with Quad-Core Processing

Powered by Android and a quad-core processor, the panel includes 2GB of RAM and 16GB of internal storage for its control interface and supported functions.

Eight-Channel Audio System

The AI-230 provides eight audio channels with a specified output rating of 30W per channel. It is designed for compatible multi-speaker audio installations, subject to speaker and wiring requirements.

Dual Audio Sources and Two-Zone Music Control

The panel supports two audio sources and independent music control across two zones, allowing flexible audio management for different rooms or areas in a home or office.

Multiple Media Playback Options

Play audio from a TF card, USB drive, internal storage or an external audio source. The panel also supports local audio input and output connections, along with a dedicated bass output.

Bluetooth and Wide Audio Format Support

Bluetooth connectivity provides an additional wireless connection option. Supported audio formats include MP3, WAV, FLAC, APE and AC3, offering flexibility for different music and audio files.

Tuya Smart Ecosystem Support

The AI-230 supports the Tuya ecosystem. An optional Tuya Zigbee gateway function may be available in selected configurations, allowing connection to more than 50 compatible sub-devices. Confirm that the specific unit includes Zigbee gateway hardware before purchasing.

Clock and Calendar Display

The touchscreen supports clock and calendar display functions, making it useful as an everyday information panel in addition to its audio and smart control capabilities.

Optional Wireless Microphone and Karaoke

Wireless microphone and family karaoke functions are optional and depend on the selected configuration. These features and accessories should not be assumed to be included with the standard version.

Designed for Fixed Installation

The AISP AI-230 features a rectangular front panel with specified dimensions of 237×112×10mm. Confirm the installation cutout dimensions, electrical requirements and audio wiring before mounting the device.

Why Choose AISP AI-230?

• 7-inch IPS touchscreen for convenient control.
• Android operating system with Tuya ecosystem support.
• Quad-core processor and 2GB RAM.
• 16GB internal storage.
• Eight audio channels with specified 8×30W output.
• Dual audio sources and two-zone music control.
• Bluetooth, TF card and USB media support.
• MP3, WAV, FLAC, APE and AC3 audio compatibility.
• Local audio input, output and bass connection.
• Clock and calendar display functions.
• Optional Tuya Zigbee gateway and karaoke features.

Important Compatibility and Installation Notes

Tuya Zigbee gateway functionality, wireless microphone support and karaoke features are optional and may not be included in every configuration. Verify the supplied version, speaker compatibility, electrical connections and mounting cutout dimensions before installation.

AISP AI-230 Smart Control Panel in Jordan

For homes, offices and smart audio installations in Jordan, the AISP AI-230 offers touchscreen control, multi-channel audio capabilities and flexible media playback options in a single panel.

Order the AISP AI-230 7-Inch Tuya Android Smart Control Panel from AlSamman For Computer at SAMMAN.JO in Amman, Irbid and across Jordan.
